**SOLD**2024 Okuma Genos L3000 MYW-EX
OSP-P300LA-eOSP-P300LA
Axis 5
Swing 20.47in
Center Distance 20.47in
Chuck Size 10in
Bar Capacity 3.15in
X Axis Travel 9.25in
Y Axis Travel 3.94in
Z Axis Travel 18.11in
B Axis Travel 20.47 in
C Axis Index 0.001°
Spindle Nose A2-8
Spindle Speed 3,800 rpm
Main Motor 30
Y Axis
Live Tooling
Live Tooling Speed 6,000 rpm
Live Tooling Motor7.5 hp
Sub Spindle
Sub Spindle Nose140
Spindle C

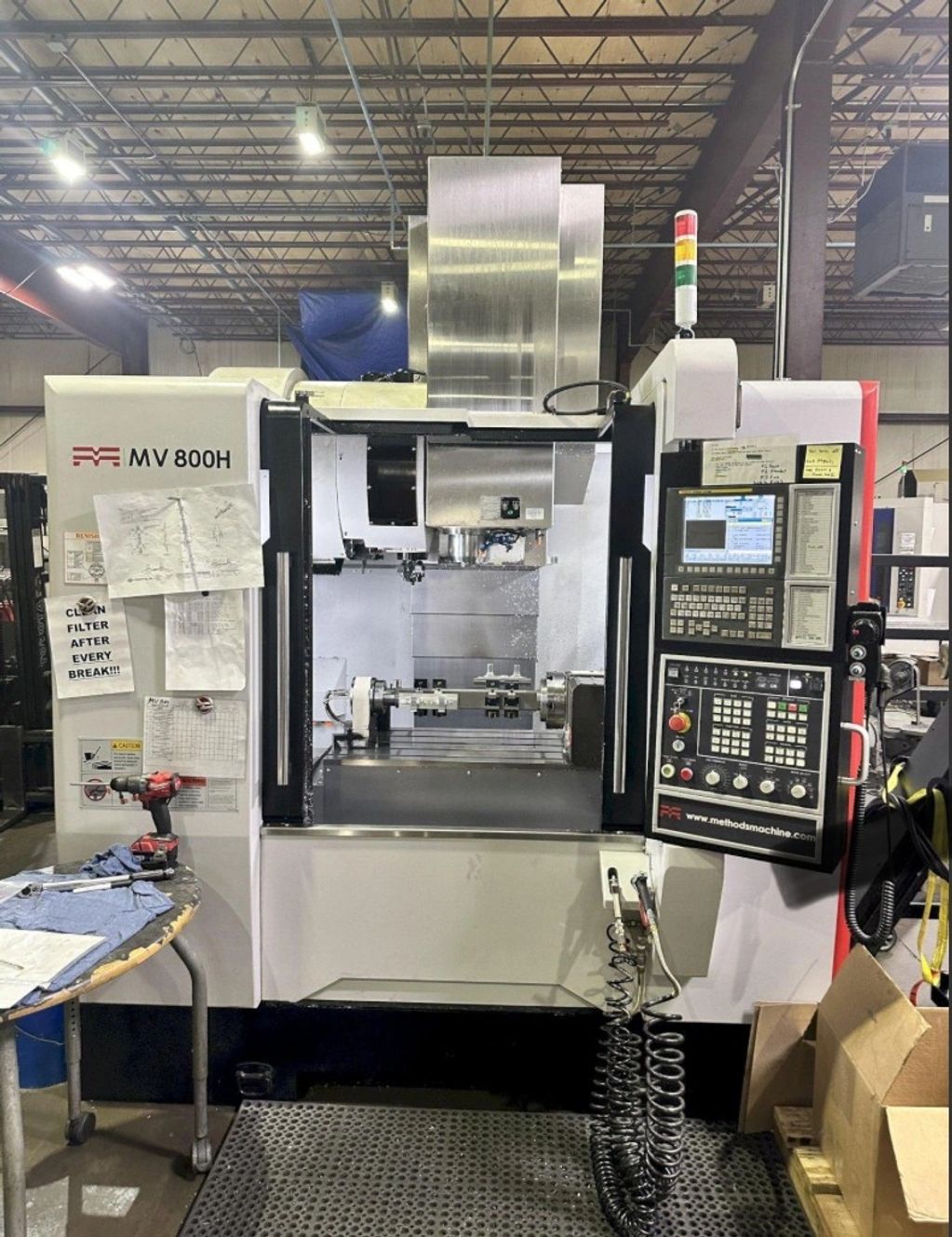

**SOLD**2020 Methods MV-800H CNC VMC
X - 31.5"
Y - 20.47"
Z - 19.88"
Rapid Traverse 2362 ipm
Taper 40
RPM 15000
ATC 24
Coolat thru
REACH OUT FOR QUOTE!!
**SOLD**Okamoto ACC 12.24 EX CNC Grinder
Table Width - 12"
Table Length - 24"
Table Load - 925 lbs
Wheel Diameter - 12"
Wheel Width - 1.5"
Grinding Wheel RPM - 1800
HP - 5
Okomoto Precision CNC Control
Coolant Filtration System
REACH OUT FOR QUOTE!!
Samsung Model SL25B/500
Year 2011
Condition Used
X Axis Travel 8.66''
Z-Axis Travel 23.23''
Rapid Rate X-Axis 709 IPM
Rapid Rate Z Axis 945 IPM
Bar Capacity 3''
Spindle Speed 3,500 RPM
Max Swing 20.47''
Spindle Motor 30 HP
Dimensions 188'' X 68'' X 72''
Weight 11,000 lbs
2020 HAAS UMC 1000SS W/8 PALLET PALLET POOL
X-Axis Travel 40"
Y-Axis Travel 25"
Z-Axis Travel 25"
Spindle Speed 12,000 RPM
Spindle Taper 40 taper
Spindle Motor 30 HP
Tool Magazine Capacity 50 ATC
Additional Axis 5th Axis
Trunnion Table
Chip Removal
Belt Type Chip Conveyor
Table Size 25" x 25"
1000psi coolant thru
Through-Tool Air Blast
Integrated 8-Station Pallet Pool 8+1 pallets
CABCOOL, RJH-T
**SOLD** 2001 Miyano BND-42S5 with Full C-axis on main and sub spindles 12 station turret with live tools
Max. Machining Length 5"
Main Motor Power 15 hp
Main Spindle Max 5,000 RPM
Main Spindle Bar capacity 1.625"
Sub Spindle
C Axis Yes
Sub Spindle Motor 3 hp
Main Spindle Max 5,000 RPM
Sub Spindle Bar Capacity 1.312"
Rapid X IPM 472"
Rapid B IPM 472"
Main Spindle C Axis Yes
Turret Stations 12
No.
**SOLD**2004 Haas SL 30T
Chuck Size 10"
Bar Capacity 3"
Swing 30"
Turning Diameter 17"
Spindle Speed 3,400 RPM
Control Haas CNC
Distance Between Centers 30"
Turret 12 Station
Features
Auto Tool Presetter
Chip Auger
Tailstock
**SOLD**2002 MICROWEILY TY 2660 Manual lathe
Swing over bed (20")
Swing over cross slide (13")
Swing in gap diameter (26 3/8")
Length of gap in front of face plate (7 1/16") D1-8
Centre Height (10")
Distance between centres (60")
Bed Width 400mm (16")
Main Motor 3ph (15HP Optional)
Coolant pump 1/8HP,3ph
Spindle Bore (3 1/8")
Spindle Nose D1- 8" ISO or A1- 8" ISO
Taper in nose/sleeve No.7/N
**SOLD**2022 Bodor I7 Series 3000W fiber Laser
- 438 hours
- incudes exhaust fan
-step down transformer
Scharmann 4.7" CNC Table Type Horizontal Boring mill
Spindle Size 4.7"
X-Horizontal Travel of Table 79"
Y-Vertical Travel of Head 55"
Power 30 HP
Table - W39"
Table - L55"
Spindle Travel - 24"
Control CNC (Heidenhain TNC 415B control)
Weight 50,000lbs
POREBA TCG-200/6000
Centre height: 1000 mm
Swing over bed: 2000 mm
Swing over saddle: 1680 mm
Turning length: 6000mm
Maximum chip cross-section for turning 57% at 90 m/min steel: 60 sq. mm Cross-sectional tool shank dimensions: 70 x 70 mm Headstock
Machine lived an easy life and the ways show the condition and care given to this lathe
1998 PARPAS MODEL: SL100-2500
YEAR: 1998
TRAVELS:
X AXIS -98" (2489 MM)
Y AXIS- 39" (991 MM)
Z AXIS-43" (1092 MM)
SPINDLE SPEED: 2500 RPM EQUIPPED WITH:
- HEIDENHAIN 426 CNC CONTROL
- ROTATING HEAD GIVES PLUS 2 AXIS (3+2 AXIS)
- TOOL CHANGE CAPACITY: 40 20,000 LBS TABLE CAPACITY
Machine is in good shape and great running order ready to go to work.
DECKEL MAHO DMU 50 eVolution linear CNC 5-axis Vertical Machining Centre
Specifications:
Table / pallet size: 24.8" x 19.7"
Max table/pallet load 440 lbs
Traverse X 19.7"
Traverse Y 17.7"
Traverse Z 15.7"
Traverse B -5/+110 Deg
Traverse C +/-360,0000 Deg Spindle
RPM 20-18,000 rpm
Spindle 40
ATC 30 Tools
Equipped:
Heidenhain iTNC530 CNC 3D Control
MPG
NC rotary table with swivel
3 D touch probe
COMING SOON
SMTCL 1600 VMC
MAM 72-63V
